What's Puffin?

Puffin is the most cost-effective remote control solution available.Puffin is featuring a dual-CPU architecture SoC, on-chip NPU , and 4G cellular connectivity. It supports remote video and audio transmission, control, and sensor data collection, making it a versatile solution for teleoperation , telemetry , and other remote robotics applications . Expand remote control models with 4G connectivity.
GO BUy

Features

4G Cellular

Global Control
1080p/30fps

MiPi Camera
4K/60fps

IP Camera
H.264/H.265

Video Transmission
PWM

Easy Setup
0.8W

Low Power Consumption
Puffin supports one MIPI camera with a resolution of 1080p at 30fps , and can handle up to four IP cameras . It can stream one 4K IP camera at 60fps or up to four IP cameras at 1080p at 30fps.

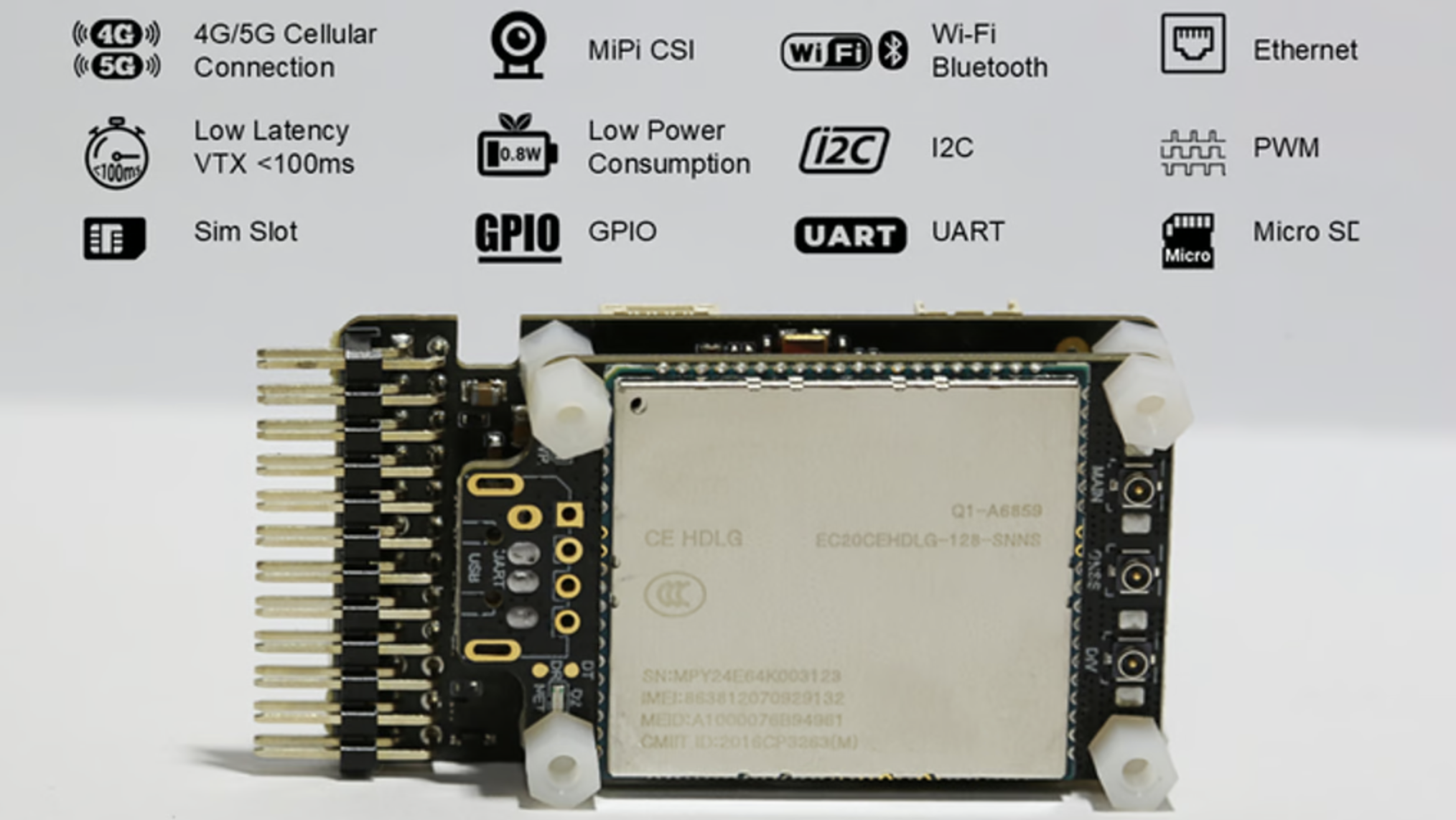

Puffin Hardware

The Puffin hardware comes in a compact form factor, measuring 61mm in length, 31mm in width, and 15mm in height, weighing only 23g , making it easy to integrate into your device. Puffin (4G) uses a MIMO antenna structure to ensure a reliable connection and is backward compatible with 2G and 3G networks, so you don't need to worry about weak signals. It also features GPS to provide precise location tracking.

Expand remote control models with 4G connectivity

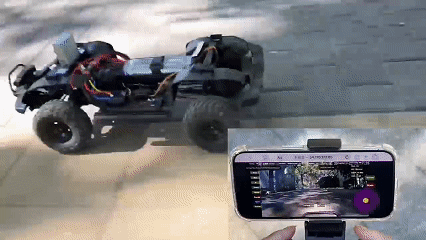

RC model Car with 4G cellular connection

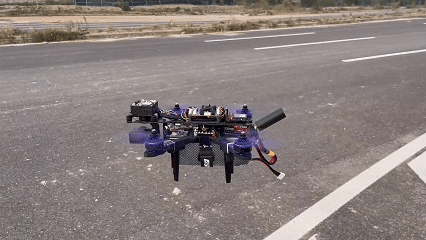

Quadcopter Drone with Puffin Board
A 4G connected mini excavator
4G Smart Car+Surveillance Camera

Low latency Video Transmission and Control

One of Puffin's most important features is its low-latency video transmission and control. We utilize WebRTC -based peer-to-peer transmission, enhanced by our custom boost engine and bandwidth estimation algorithm , allowing us to achieve latencies as low as 100ms

Puffin AI features

Puffin is equipped with a 0.5T NPU, enabling it to handle computer vision AI tasks like object detection. It supports models such as YOLO and MobileNet V2, making it ideal for on-device AI processing.

Gesture Tracking

Face recognition

Body Detection

Expand remote control models with 4G connectivity

Our control software is web-based, providing seamless cross-platform compatibility. Whether you’re using a phone, computer, or AR/VR device, as long as it can open a web page, you can easily manage and control the system anytime anywhere
Smart Phones
PC
Controllers
AR、VR

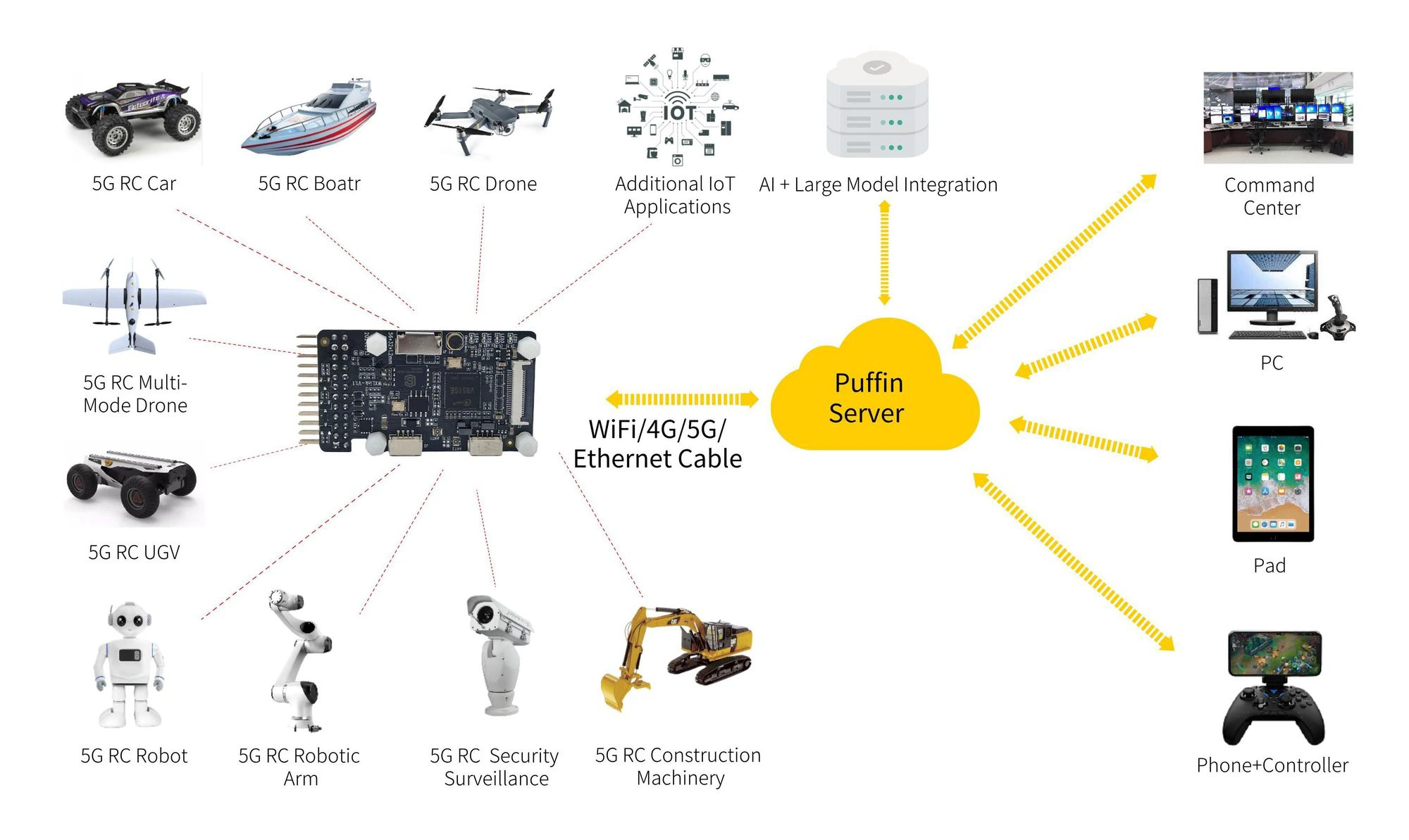

Applications

Specification

Cortex-A7 core@900MHz
RISCV@600MHz

On-chip 0.5T NPU
On-chip 64M DDR

Cellular:MlMO 4G/5G(SKU dependent),
backward compatible 2G 3G
WIFI: 2.4G
Bluetooth:2.4G
GNSS:GPS/GLONASS
100M Ethernet Port

MiPi Camera: 1080P 30 FPS
IP Camera: 4K 60 FPS
4-channelIPC1080P 30FPS
H.264/H.265 Encoding

Onboard mono microphone
Onboard speaker 1W output

I2C,SPI,UART,GPIO,PWM

Powerinput: 3.7V-16V
Power consumption: Min:0.8W, full load5W

Measurements:61mmX31mmX15mm
Weight: 23g

nano SlM card slot
TF card slot
G sensor,
3-axis acceleration
LED indicators
